NDD7-F/JZF-10 intelligent forward/reverse automatic controller is suitable for AC 50/60Hz, working voltage 380V and below or working voltage DC24V control circuit as a delay element. The controller has the advantages of high delay precision, wide delay range and low power consumption, and its external size conforms to DIN standard (48mmX48mm), which is widely used in various automatic control circuits of motors.

The series controllers comply with GB 14048.5-2008 and JB/T 10047-1999

Technical parameters

Working  supply

AC380V、220V、110V> 36V、24V 50Hz; DC24V

The allowable voltage fluctuation range is (85% ~ 110%) Ue

Delay range

Forward 1-9999S; Stop 1-9999S; Inversion 1-9999S;

Timing error

±0. 2%

Timing mode

The control end is switched on for timing, disconnected for not timing, and then switched on for cumulative timing

Reset way

Panel button and terminal short reset

Working mode

ndd7 fzfzkzq1:Forward→ stop → reverse→ stop…………

ndd7 fzfzkzq0:stop →Forward→ stop → reverse…………

 Count function

1. When the number of cycles is set to such as, press stop - positive turn - stop - reverse - stop...A secondary elementary school is evaluated

2. When the number of cycles is set to any value between 1 and 9999, the program goes out in working mode or P0 to set the number in a loop. When the number is set, the loop will no longer be cycled.

Memory function

Power outage data memory for 10 years

Contact capacity

5A AC250V impedance

Electrical life

1*100000

The environment temperature

-5℃-+40℃

Installation way

Face plate, device or 35mm guide rail

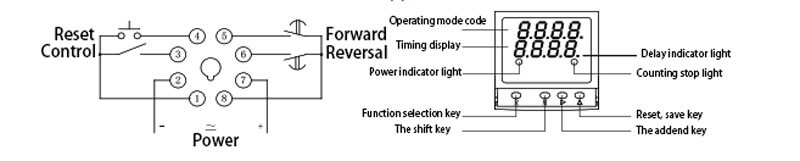

The wiring diagram and panel shows

ndd7 fzfzkzq 1138

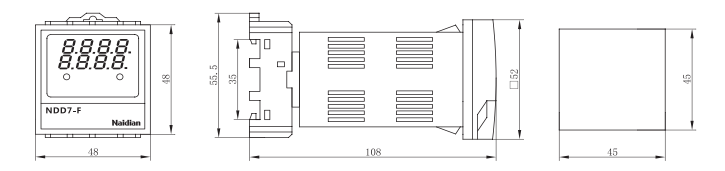

Outline and installation dimension drawing
