Which Power Relay Fits Your 40A Switching Application?

You’re designing a control circuit for industrial automation, an EV charging station, or heavy equipment that needs to switch high currents safely and repeatedly. The component that handles this critical switching is a Power relay —an electromagnetic device that uses a low-power control signal to switch a high-power circuit.

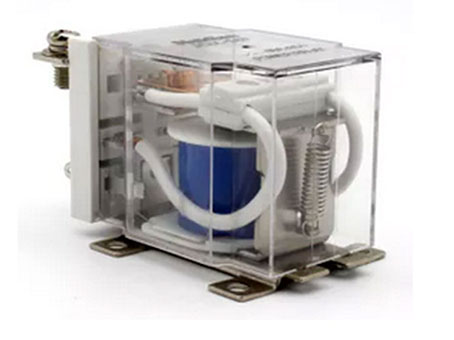

The ND22J-1Z (JQX-40F-1Z) high-power relay is engineered for these demanding applications, with 40A contact capacity at 250VAC/30VDC, AgCdO contacts for arc resistance, and insulation resistance of 1000MΩ at 500VDC. This guide covers what makes this relay a reliable choice for high-current switching—from contact material to coil voltage options to application fit—and helps you determine if it’s the right solution for your design.

When Your Circuit Demands 40A Switching

Not every application needs a 40A relay. But when yours does, the specifications matter.

Contact Capacity That Handles Heavy Loads

The ND22J-1Z is rated for 40A at 250VAC and 30VDC. This capacity covers a wide range of industrial loads—motors, heaters, lighting banks, and power supplies. For applications that draw high currents, a relay with adequate contact capacity is essential for reliable operation.

Low Contact Resistance for Efficient Power Transfer

Contact resistance is rated at ≤100mΩ (at 1A 6VDC) . Low contact resistance means less heat generation at the contact point and more efficient power transfer. For high-current applications, even small resistance differences can affect system efficiency and reliability.

Insulation Resistance That Ensures Safety

The relay provides insulation resistance of 1000MΩ at 500VDC. This high insulation resistance ensures reliable isolation between the coil and contact circuits, reducing the risk of leakage currents and improving system safety.

AgCdO Contacts – The Durability Difference

The contact material is one of the most important factors in relay longevity. The ND22J-1Z uses AgCdO (silver cadmium oxide) contacts—a material choice that matters for high-current switching.

Why AgCdO Matters

AgCdO offers excellent arc resistance and anti-weld properties. When switching inductive loads—motors, solenoids, transformers—arcing occurs as the contacts open and close. AgCdO withstands this arcing better than pure silver, extending contact life and reducing maintenance.

Contact Form Flexibility

The relay is available in 1Z contact form (SPDT), providing both normally open and normally closed contacts. This flexibility allows the relay to be used in a variety of control configurations—from simple on-off control to more complex switching applications.

Built for Repeated Switching

For applications requiring frequent switching, the AgCdO contacts provide the durability needed for thousands of operations. The relay is designed for use in automatic devices, relay protection, and communications equipment, where reliability over repeated cycles is essential.

Coil Voltage Options That Match Your Control System

The ND22J-1Z is available in a wide range of coil voltages, making it adaptable to different control system requirements.

DC and AC Coil Options

The relay supports DC coil voltages from 6V to 220V and AC coil voltages from 6V to 380V. This wide range means the relay can be used in systems with different control voltages without requiring additional voltage conversion components.

Coil Power Consumption

DC coil power is rated at ≤2W, and AC coil power at ≤2.5VA. Low coil power consumption means the relay can be controlled by low-power signals from PLCs, microcontrollers, or other control devices without overloading the control circuit.

Match the Coil to Your Application

Selecting the correct coil voltage ensures reliable pull-in and release under all operating conditions. Using a coil voltage that’s too low can prevent the relay from actuating; using one that’s too high can damage the coil. Always match the coil voltage to your control system’s specifications.

Where This Relay Is Used

The ND22J-1Z (JQX-40F-1Z) is used across a range of applications where high-current switching is required.

Automatic and Protection Devices

The relay is suitable for automatic devices, relay protection, and communications equipment. In protection circuits, the relay can be used to isolate faulty equipment or trigger alarms when abnormal conditions are detected.

Industrial Control Systems

In factory automation and industrial control, the relay switches motors, heaters, and other high-power loads. The 40A capacity and AgCdO contacts make it suitable for the demanding duty cycles of industrial environments.

EV Charging and Power Distribution

Electric vehicle charging systems and power distribution equipment require relays that can handle high currents reliably. The ND22J-1Z’s 40A capacity and high insulation resistance make it suitable for these applications.

Communications Equipment

In communications systems, the relay can be used to switch power supplies, antenna circuits, and other high-current paths. The compact design and reliable switching make it suitable for equipment where space is at a premium.

Questions Engineers Ask About Power Relays

What’s the difference between a power relay and a signal relay?

A power relay is designed to switch high-current loads—typically 10A or more—and is built with larger contacts and stronger arc suppression. A signal relay is designed for low-current, low-voltage applications—typically switching signals rather than power. The ND22J-1Z is a power relay with 40A contact capacity, suitable for switching motors, heaters, and other high-power loads.

How do I choose between DC and AC coil versions?

Choose based on your control circuit voltage. If your control system runs on DC (common in PLC outputs, battery-powered systems), choose a DC coil version. If your control circuit runs on AC (common in building automation, HVAC), choose an AC coil version. Using the wrong voltage will damage the coil or prevent the relay from operating reliably.

What is the expected life of the ND22J-1Z?

The ND22J-1Z is designed for reliable operation over thousands of cycles. The AgCdO contacts provide excellent arc resistance, contributing to long electrical life. For specific life expectancy data, consult the manufacturer’s datasheet for your operating conditions. The JQX-40F relay is typically available in sealed or flux-proof packages for industrial use.

Does the relay comply with environmental regulations?

The ND22J-1Z is manufactured to meet relevant environmental and safety standards. For specific compliance documentation, contact the manufacturer with your application requirements.

Why NPower Group

Choosing the right supplier for your power relay needs is about more than specifications—it’s about quality, consistency, and long-term reliability.

NPower Group manufactures a range of power relays designed for industrial control and power switching applications. The company offers high-power relays, electronic time relays, digital timer relays, DC to AC solid state relays, and digital display timer relay products. The ND22J-1Z (JQX-40F-1Z) high-power relay is one of their key products, featuring 40A contact capacity, AgCdO contacts, and a wide range of coil voltage options.

For engineers and procurement professionals, the decision to specify a power relay is about matching the contact capacity, coil voltage, and durability to the application’s demands. NPower Group provides the product quality, technical support, and application guidance that industrial projects require.

Get a Quote for Your Power Relay Application

The right power relay makes the difference between a control system you can trust and one that fails when it matters most. If you’re designing industrial controls, EV charging systems, or protection circuits that need reliable 40A switching, the ND22J-1Z (JQX-40F-1Z) offers the capacity, contact durability, and coil voltage flexibility that demanding applications require.

Reach out to NPower Group’s team — share your application requirements, load specifications, and control voltage. They’ll help you select the right relay configuration for your specific needs.
