DX-9 Flash and signal relay

Rated DC voltage (V) : 220 (50HZ)
Rated AC voltage (V) : 220 (50HZ)
Contact form: 2 pairs of dynamic joint and 1 pair of dynamic break
Motion: ≦80% rating
Flash frequency (times /min) : 40-80
Power consumption: DC: ≦5W AC: ≦12VA
Contact performance: DC250V1A τ=5mA 50W AC250V2A
COS=0.4 250V

Download

Product overview
Product parameter

Usage

Dx-9 flash relay is used for signal circuit. When the power is switched on, the contacts can be switched on and off periodically to cause the controlled light signal to flash.

Main technical parameters

Rating: DC 220V,110V, 48V, 24V
AC, 220V, 50Hz

Contact form: two sets of dynamic combination, one set of dynamic break

Action value: no more than 80% rating.

Flash frequency: 40-80 times per minute.

Power consumption: dc no more than 5W, AC no more than 12VA.

Contact capacity: In the dc inductive load circuit with voltage no more than 250V, current no more than 5A and time constant of 5+0.75ms, the disconnect capacity of the product output contact is 50W.The output contact can reliably operate and return 5X10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.

Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000V (effective value) 50Hz AC voltage test for 1 minute between exposed non-charged metal parts or shells, without insulation breakdown or flasticity phenomenon.

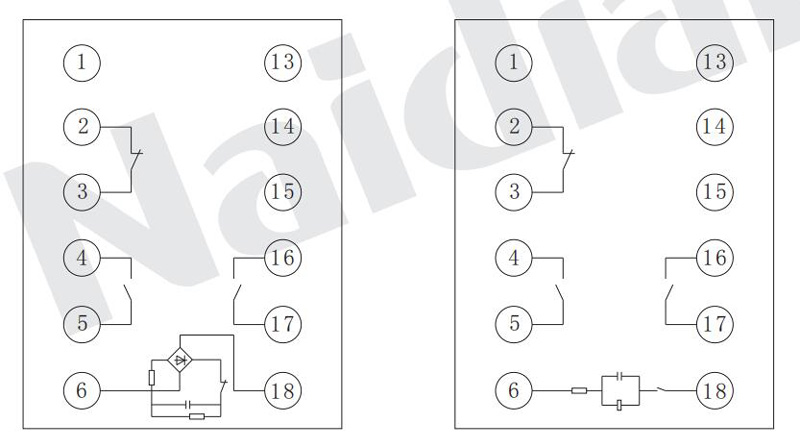

Internal wiring

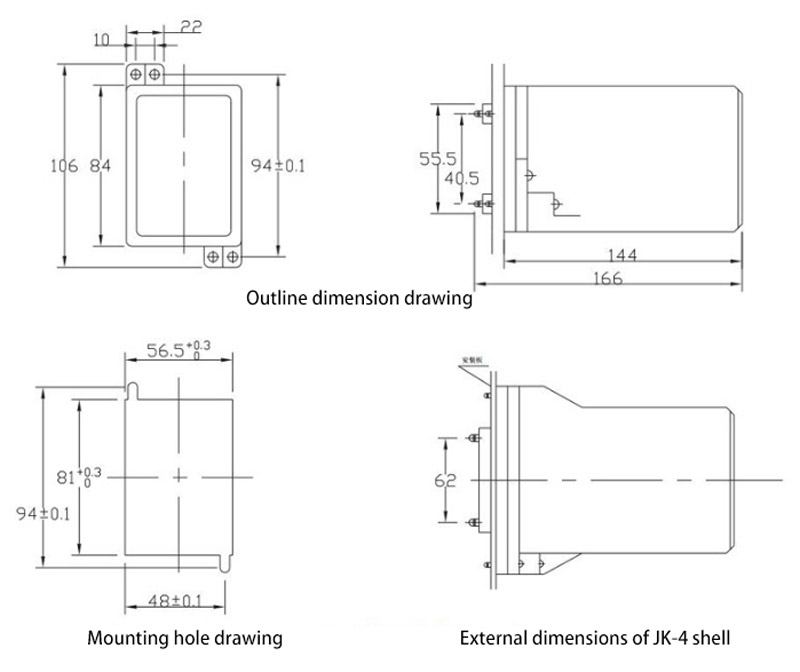

dx 9sg xhjdq 2
