DX-8, 8G signal relay

Setting range:
Voltage: 12, 24, 48, 110, 220V
Current: 0.01, 0.015, 0.02, 0.025
0.04, 0.05, 0.075, 0.1
0.15, 0.25, 0.5, 0.75
1, 2 a
Action current: Voltage: ≤90% ≤70%
Operation time: interval ≤30ms
Power consumption: current ≤0.3W voltage ≤1.8W
Contact capacity: DC50WAC250VA
Contact form: triple action

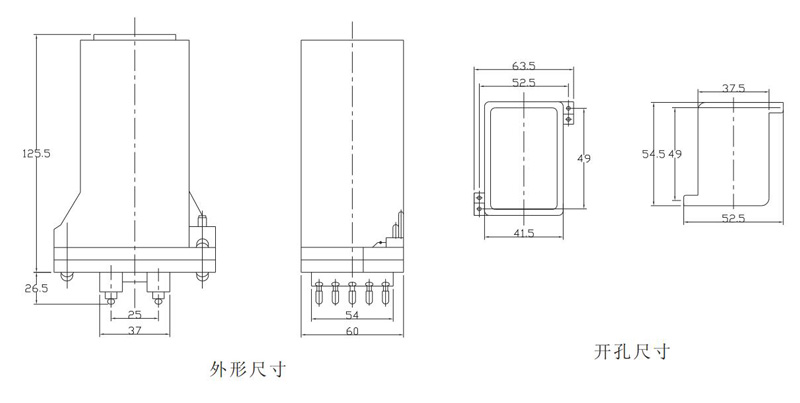

External dimension: 60×63.5×152mm
Opening size: 54.5×37.5mm
Installation method: wiring of front and rear boards

Download

Product overview
Product parameter

Application Range

Dx-8 type 8g signal relay (hereinafter referred to as relay) is used as an action indicator for mechanical holding and manual recovery in dc operation protection and automatic control devices

Main technical parameters

Rating: DC220V, 110 v, 48 v, 24 v, 12 v, 0.01 A, 0.015 A, 0.025 A, 0.05 A, 0.075 A, 0.1 A, 0.15 A, 0.25 A, 0.5 A, 0.75 A, 1 A, 2 A, 4 A.
Action value: voltage type not more than 70% rated value;Current type not greater than 99% rating.
Power consumption: voltage type not more than 3W;The current type is not greater than 0.3W.
Number of contacts: In the dc inductive load circuit with voltage no more than 250V, current no more than 5A and time constant of 5+0.75ms, the disconnect capacity of the product output contact is 50W.The output contact can reliably operate and return 5x10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000V (effective value) 50Hz AC voltage test for 1 minute between exposed non-charged metal parts or shells, without insulation breakdown or flasticity phenomenon.
Action time: no more than 30ms.

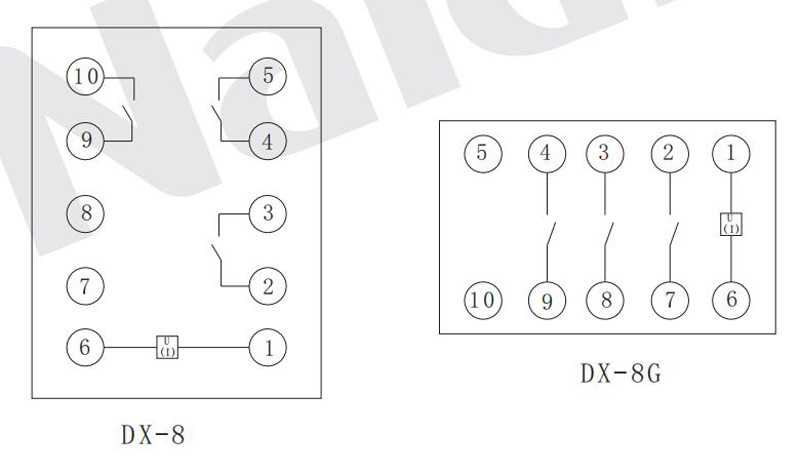

Internal wiring

dx 8 8gxhjdq 2
