DX-18, 19 Flash, signal relay

Rating (Un) : DC voltage (V) : 220 110 48
Ac voltage: 220 (50HZ)
Contact form: DC: 1 to AC: 1 dynamic closing
Flash frequency (times /min) : 40-80
Motion Value: ≦80%Un
Power consumption: DC≦6W AC≦12VA

Download

Product overview
Product parameter

Usage

DX-18,19 flash signal relays (hereinafter referred to as relays) are used for AC/DC signal circuits.When the power supply of the working coil is switched on, the contact can be switched on and off periodically to cause the controlled light signal to flash. The DX-19 relay can connect 30 LED energy-saving lamp signal circuits.

Main technical parameters

Rated value :DC 220V,110V,48V;
AC 220 v, 50 hz.
Action value: no more than 80% rated voltage.
Flash frequency: 40-80 times per minute.
Action value: not more than 70% rating.
Power consumption: DX-18 dc no more than 6W, AC no more than 12VA;
Dx-19 dc is not greater than 6W, ac is not greater than 6VA;
Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000V (effective value) 50Hz AC voltage test for 1 minute between exposed non-charged metal parts or shells, without insulation breakdown or flasticity phenomenon.

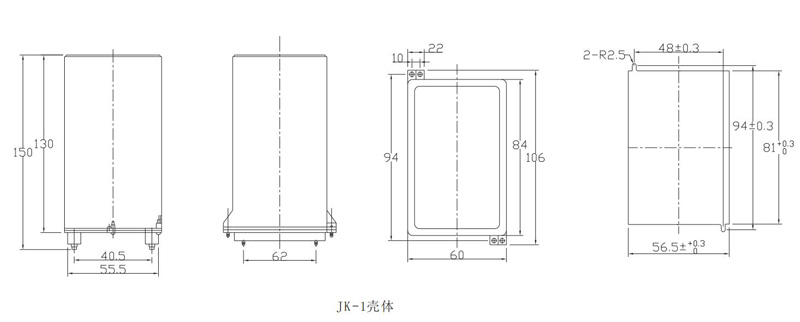

Internal wiring

dx 18 19sg xhjdq 02
