DX-10 Signal relay

Setting range:
Voltage: 12V, 24V, 110V, 220V
Current: 0.01a, 0.015A, 0.025A,
0.05A, 0.075a, 0.1A,
0.15A, 0.25A, 0.5a, 1A
Action current: Voltage: ≤90% ≤70%
Power consumption: current ≤0.3W voltage ≤1.8W
Contact capacity: DC50WAC250VA
Contact form: two action or three action

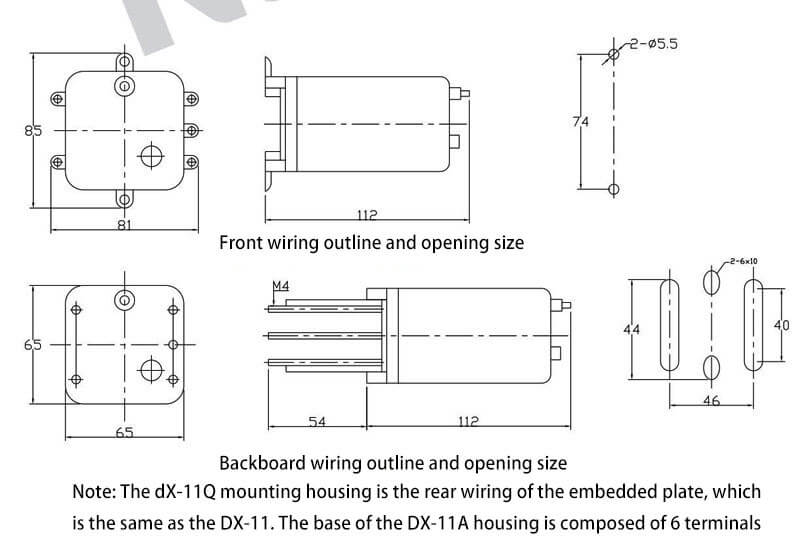

Dimensions: 64×64×105mm
Installation method: wiring of front and rear boards

Download

Product overview
Product parameter

Application range

DX-11,DX-11A,DX-11Q signal relays are used as signal indicators in protective lines for DC operations.

Main technical data

Rated voltage: 220V,110V,48V,24V,12V.
Current rating: 0.01 A, 0.015 A, 0.025 A, 0.05 A, 0.075 A, 0.1 A, 0.15 A, 0.25 A, 0.5 A, 0.75 A, 1 A.
Action value: the action current shall not be greater than 90% of the rated current;Operating voltage shall not be greater than 70% rated voltage.
Power consumption: current shall not be greater than 0.3W;The voltage is not greater than 2W.
Dielectric strength: each circuit of the relay shall be tolerant to the exposed non-charged metal parts at AC 50Hz and no breakdown or flashover phenomenon at voltage 2kV for 1min.

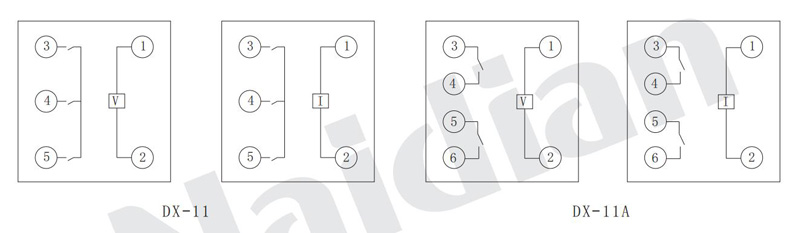

Internal wiring

dx 10xhjdq 2
