NDQ11(GSK-40) Optical time control switch

Operating voltage: AC220V 50Hz, allowable voltage fluctuation range is (85% ~ 110%) Ue.
Output contact capacity of optical time control switch: AC220V 10A (resistance).
Working mode: "Long night ";"Midnight" can be adjusted within 4h ~ 8h.
Optical control elements allowed connection length: ≤100m;
Installation method: device type.

Download

Product overview
Product parameter

Summarize

NDQ11 (GSK-40) optical time control switch is suitable for ac 50Hz, working voltage AC220V control circuit, according to the brightness of light (bright or dark) and scheduled time to turn on and off the electrical equipment.Optical time control switch adopts imported integrated circuit, which has the advantages of high sensitivity, small timing error, reliable action and convenient operation.

This series of time-controlled switches conforms to the relevant requirements of GB140485-2008.

Main technical parameters

1. Operating voltage: AC220V 50Hz, allowable voltage fluctuation range is (85% ~ 110%) Ue.
2. Output contact capacity of optical time-control switch: AC220V 10A (resistance).
3. Working mode: "Long night ";"Midnight" can be adjusted within 4h ~ 8h.
4. Allowed connection length of optical control element: ≤100m;
5. Installation method: device type.

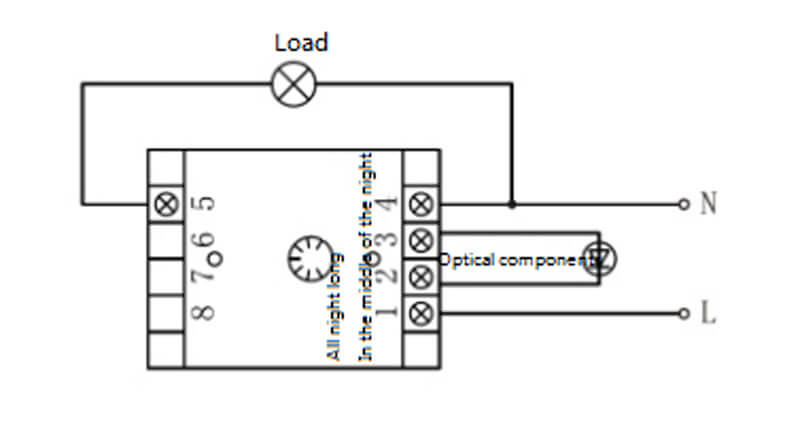

The wiring diagram

ndq11 gsk 40 gskkg 2
