ZJ5 ZJ6 Intermediate relay

Main technical data

Rated operating current: 2.5a,5A.
Long-term operating current: 10A.
Action time: no more than 0.05s.
Power consumption: no more than 6VA.
Contact form: ZJ5 four normally open, ZJ6 all change to a strong switch.
Such as accused of circuit system by the power of the converter, and when the current is 3.5 A, the impedance is not greater than 4.5 Ω, powerful switch contacts under the condition of the electric current to 150 A, can tap disconnect tripping coil.In order to eliminate the possible switch misoperation when the normally closed contact is not properly closed, the strong switching contact adopts the connection method shown in Figure 1.
General contact capacity: 450VA can be disconnected when ac current is less than 2.5a and voltage is less than 220V;1000VA can be connected when the ac current is less than 15A and the voltage is less than 220V.Long-term on current is 5A.

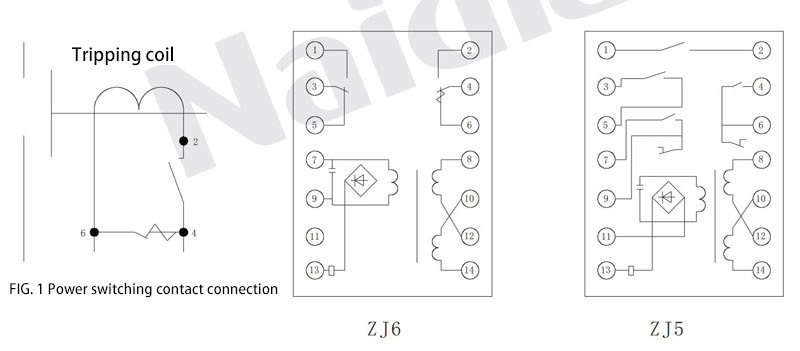

Internal wiring diagram

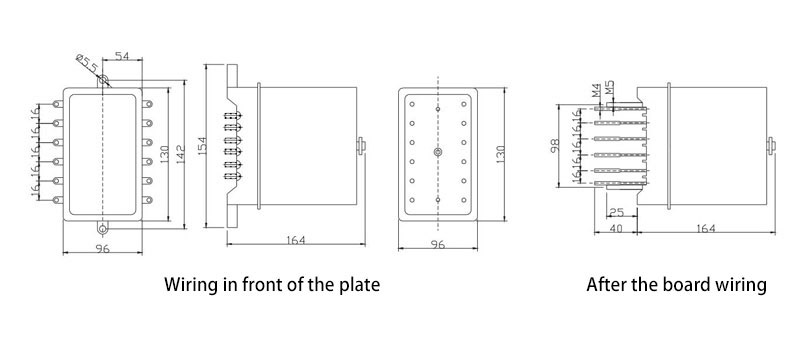

Mounting and opening dimensions
