JZ(JZ-7 NJZ) series static intermediate relays

Download

Product overview
Product parameter

Usage

JZ- series intermediate relays are composed of integrated circuit principle and have good vibration resistance. They are suitable for various power relays and automatic control devices to increase the contact capacity and number of protection and control circuits.

Main performance

Conventional electromagnetic type intermediate relays of 100V and 220V use very thin wires and many turns, resulting in easy line break and low reliability. Operation time and return time. This series of intermediate relays adopt static electronic control circuits to control the conduction or turn-off of multiple sealed entrances at the same time.It has the following properties and characteristics:
1. Adopt high performance sealed relay to protect against moisture and dust.Continuous line, high reliability..
2. Accurate operating voltage, high return coefficient, no jitter.Low power consumption, multiple features simultaneous action or return (100% controllability) •
3. Light indicator and power indicator are provided after relay operation.
4. Long electrical and mechanical life of relays.
5. High insulation resistance level.The contact capacity is large and the contact resistance is small.
6, good anti-interference characteristics, can be used in strong interference or power supply voltage quality is very poor.

Technical conditions

1.Environmental reference condition
Ambient temperature: 20℃±2℃
Relative humidity: 45%-74%
Atmospheric pressure: 80kPA-106kPa
Limit temperature during storage and transportation: -25℃-75℃
Altitude of use place: not higher than 2500 meters
There is no explosive dangerous goods and no corrosive gas in the surrounding media of the use environment;The concentration of the conducting dust should not reduce the insulation level below the allowable value.

2. Normal conditions of use
Ambient temperature: -25℃-+40℃
Ambient relative humidity: no more than 90%
Atmospheric pressure: 80kPA-110kPa

3. Relay ratings
Rated voltage: 48V, 110V,220V,AC,DC,380VAC

4. Contact capacity in the voltage no more than 250V, power factor COSφ 1.0 AC circuit, can be broken 10A.
DC: Ordinary type: connect DC220V,10A;Disconnect the load of DC220V.t=5mS,50W
Type B: connect DC220V.10A;Disconnect DC250V, t=5mS,500W large-capacity contact, limit capacity of 1500W.

5. Holding value 0.7-1.2 times of rated voltage JZ- series fast intermediate relay operation time and return time shall not be more than 15mS.

6. Power consumption shall not be greater than 6W at rated voltage

7.1000V shaking table was used to measure the insulation resistance leading-out terminal for shell insulation resistance between the screw is not less than 10 m Ω.

8. Insulation voltage: Each leading terminal can bear the power frequency of 2000V to the housing locking screw, and the power frequency of 1000V between contacts in the same group, lasting for one minute, without breakdown.

9. Electric life:Type A: DC250V circuit, cut-off current T =5mS,50W, more than 10000times
Type B: DC250V circuit, cut-off current T =5mS,500W, more than 10000 times,1500W,1000 times.

10.The mechanical life contact does not meet more than 3 million times.

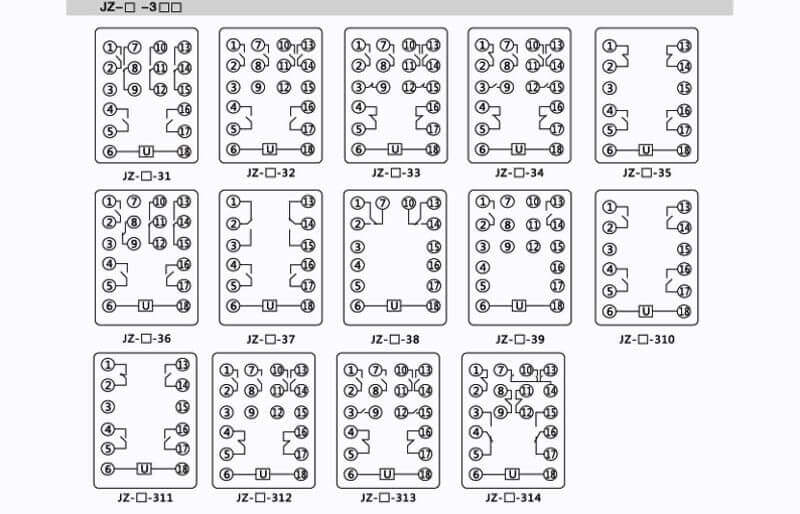

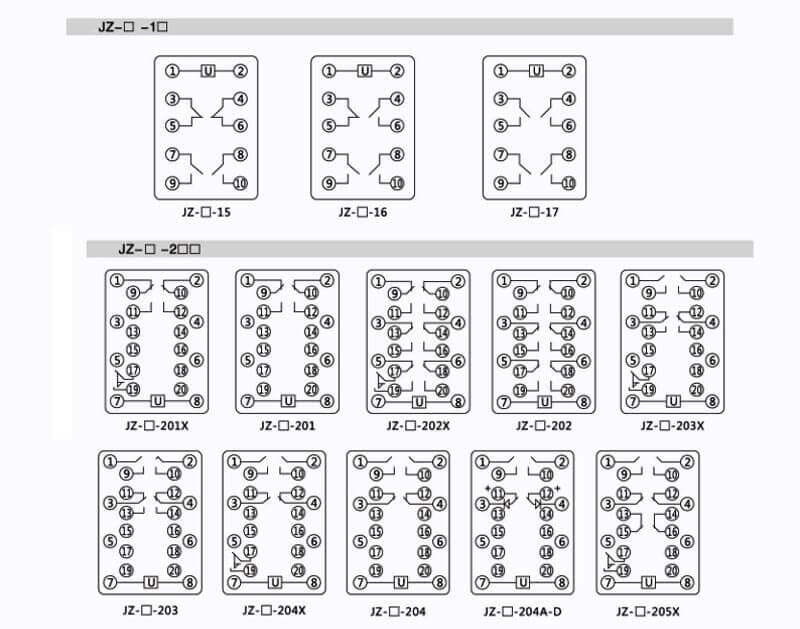

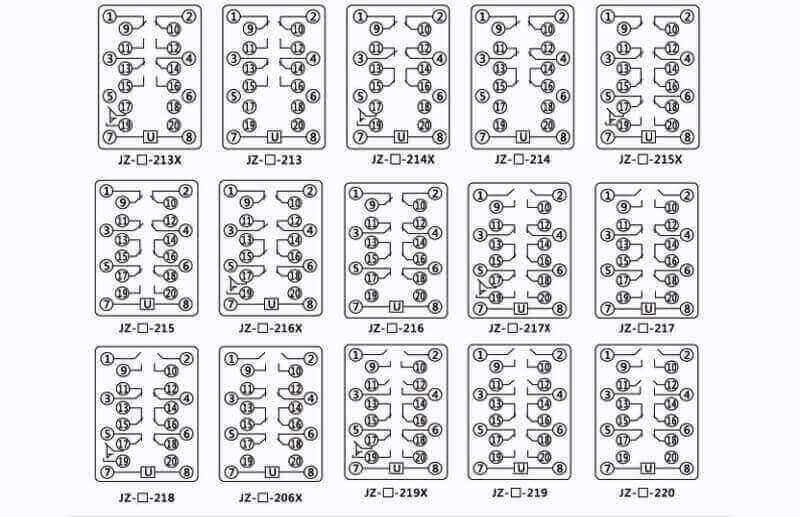

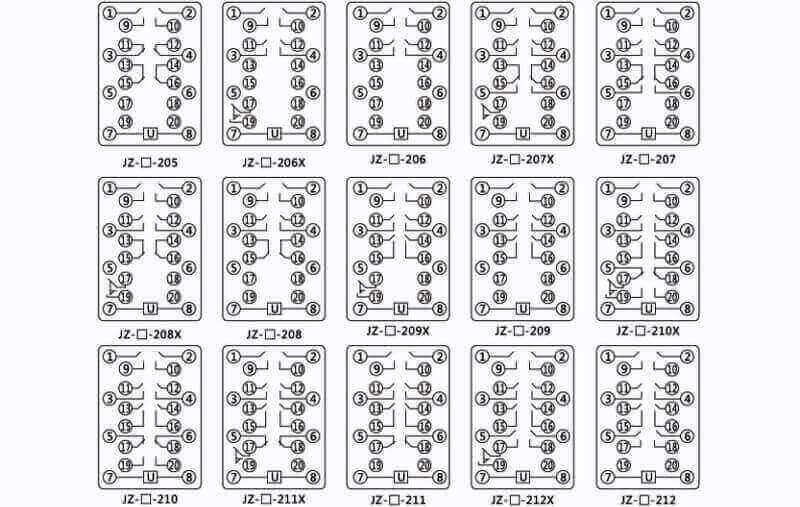

Internal wiring diagram and external wiring diagram（Front View）

jz jz 7 njz xljtzjjdq 2 jz jz 7 njz xljtzjjdq 3 jz jz 7 njz xljtzjjdq 4 jz jz 7 njz xljtzjjdq 5
