DZ-50 JY-16A Series intermediate relays

Rated voltage: DC 6,12,24,48,110,220
Contact forms: 2 dynamic closing,2 dynamic breaking,4 dynamic closing,4 dynamic breaking,
2 dynamic closing,2 dynamic breaking,2 conversion
Contact disconnection capacity: U≤250V 1≤1A DC inductive circuit 50W
U≤250V 1≤ 2.5a AC circuit
Operating voltage: ≤75% rated voltage value ≤80% rated voltage value
Return voltage: ≥5% rated voltage
Action time: ≥0.03

Download

Product overview
Product parameter

Application Range

DZ-50.JY-16A series intermediate relays (hereinafter referred to as relays) are used in automatic control devices to expand controlled circuits and improve closing capacity.

Main technical parameters

Rated voltage:

Dz-51,53 DC: 220V,110V,48V,24V,12V.
DZ type - 52, communication: 380V, 220V, 110V, 48V, 36 v, 24V, 12V.
Type JY-16A DC: 220V,110V,48V,24V,12V. Communication: 380V, 220V, 110V, 48V, 36V, 34V, 12V.

Contact form：

Dz-51, Type 52:4 dynamic snap (400), 2 dynamic snap (220), 4 dynamic break (040), 2 switching (002).
Dz-53, Type 54:8 dynamic joint (800), 6 dynamic joint (620), 4 dynamic joint (400), 4 dynamic joint (440), etc.
JY16A type: 4 dynamic snap (400), 2 dynamic snap (220), 4 dynamic break (040), 2 dynamic snap (202), 2 dynamic break (202), 2 dynamic break (002).

Operating voltage: ac relay not more than 85% rated voltage;Dc relay shall not exceed 70% rated voltage.
Operation time: no more than 0.03s under rated voltage.
Contact capacity: In the dc inductive load circuit with voltage no more than 250V, current no more than 5A, and time constant of 5+0.75ms, the cut-off capacity of product output contact is 50W.The output contact can reliably operate and return 5X10 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.

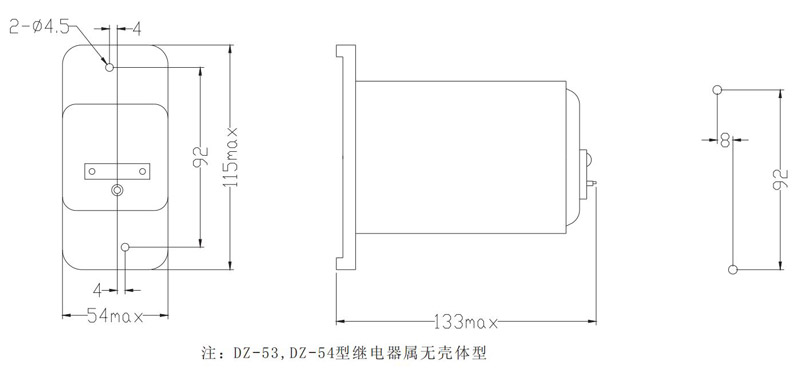

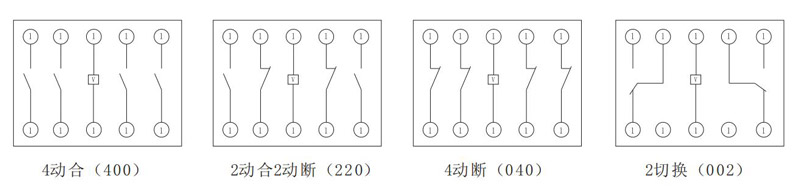

Internal wiring diagram

dz 50 jy 16axlzjjdq 2
