Rated voltage: 220V, 110V, 48V, 24V
Impulse current: 0.16A, 0.015A
Stable current: 3.2A
Contact disconnection capacity: DC40WAC50VA
Power consumption: ≤7W when the primary winding passes through 3.2A
The intermediate ZJ rating is ≤10W
Contact form: move close, one conversion
Opening size: 113.5×81mm
Installation method: ADOPT JK-2 shell
Application Range
ZC-23,23A type impact relay (hereinafter referred to as the relay), widely used in DC operation relay protection and automatic control circuits, as A centralized control signal element.
Main technical parameters
Internal wiring diagram

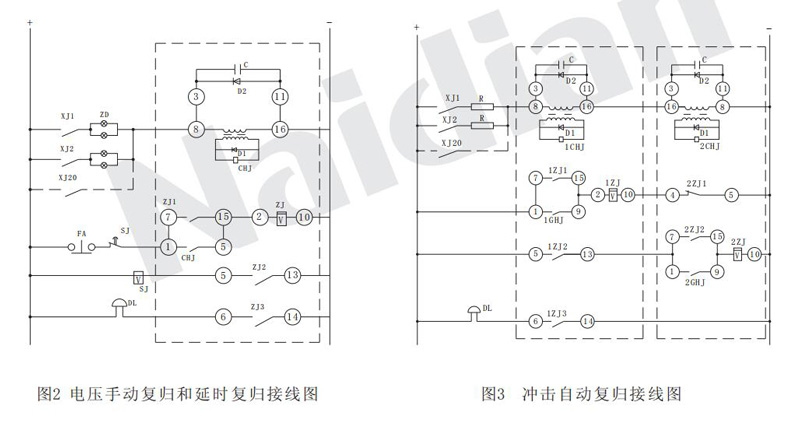

FIG. 2 Wiring diagram of voltage manual regression and delay regression
FIG. 3 Wiring diagram of automatic recovery of impact
Appearance and hole size

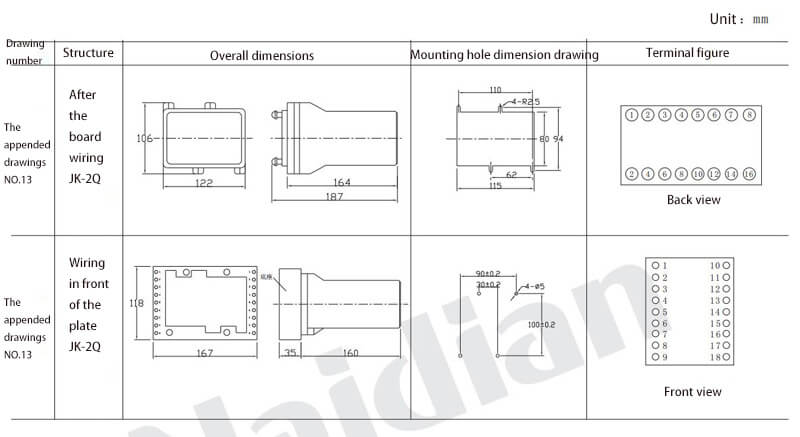

ZC-23,ZC-23A adopts JK-2 shell, the outline and hole size are shown in figure 13 attached to this manual.
