DL-10 Series current relays

Setting current: 0.2A, 0.6A, 6A, 10A, 20A, 50A, 100A, 200A
Setting error: ≤±3%
Return coefficient: 200A≥0.7 Other specifications ≥0.8
Action time: 1.2 times ≥0.15, S3 times ≥0.03s
Contact disconnection capacity: DC40W, AC200VA
Contact form: move close break

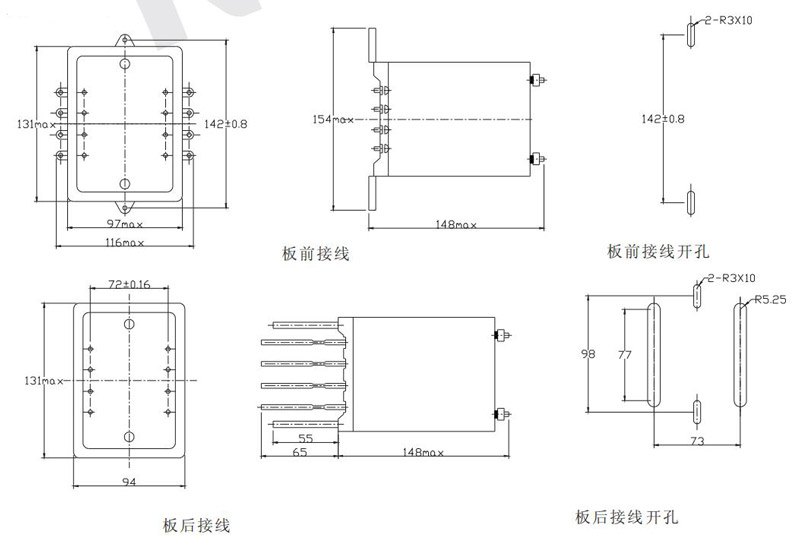

External dimension: 128×94×141mm
Installation mode: front and back connection
Note: Rated voltage with "CN" is 100V

Main technical parameters

Model	Maximum setting value	Setting range	action current		power consumption	Contact number		drop-off to pick-up ratio
			series winding	parallel coil		normally open contact	normally closed contact
DL- 11	0 . 01 A	0 . 0025 - 0 . 01 A	0 . 0025 - 0 . 005 A	0 . 005 - 0 . 01 A	≤7 VA	1		≥0 . 8
DL- 12							1
DL- 13						1	1
DL- 11	0 . 04 A	0 . 01 - 0 . 04 A	0 . 01 - 0 . 02 A	0 . 02 - 0 . 04 A	≤7 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	0 . 05 A	0 . 0125 - 0 . 05 A	0 . 0125 - 0 . 025 A	0 . 025 - 0 . 05 A	≤7 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	0 . 2 A	0 . 05 - 0 . 2 A	0 . 05 - 0 . 1 A	0 . 1 - 0 . 1 A	≤7 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	0 . 6 A	0 . 15 - 0 . 6 A	0 . 15 - 0 . 3 A	0 . 3 - 0 . 6 A	≤7 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	2 A	0 . 5 - 2 A	0 . 5 - 1 A	1 - 2 A	≤7 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	6 A	1 . 5 - 6 A	1 . 5 - 3 A	3 - 6 A	≤3 . 5 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	10 A	2 . 5 - 10 A	2 . 5 - 5 A	5 - 10 A	≤3 . 5 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	15 A	3 . 75 - 15 A	3 . 75 - 7 . 5 A	7 . 5 - 15 A	≤3 . 5 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	20 A	5 - 20 A	5 - 10 A	10 - 20 A	≤3 . 5 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	50 A	12 . 5 - 50 A	12 . 5 - 25 A	25 - 50 A	≤3 . 5 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	100 A	25 - 100 A	25 - 50 A	50 - 100 A	≤3 . 5 VA	1
DL- 12							1
DL- 13						1	1
DL- 11	200 A	50 - 200 A	50 - 100 A	100 - 200 A	≤3 . 5 VA	1		≥0 . 7
DL- 12							1
DL- 13						1	1

Contact capacity: In a DC inductive load circuit with voltage no more than 250 V, current no more than 5A, and time constant of 5 ± 0.75 ms, the disconnect capacity of product output contact 4 is 50 W.The output contact can reliably operate and return 5 X 10000 times under the above specified load conditions.The output contact is allowed to be switched on for a long time with 5A.
Dielectric strength: all conductive terminals of the product are connected together, and can withstand 2000 V (effective value) 50 Hz AC voltage test for 1 minute between exposed non-charged metal parts and the shell without insulation breakdown or flashier phenomenon.

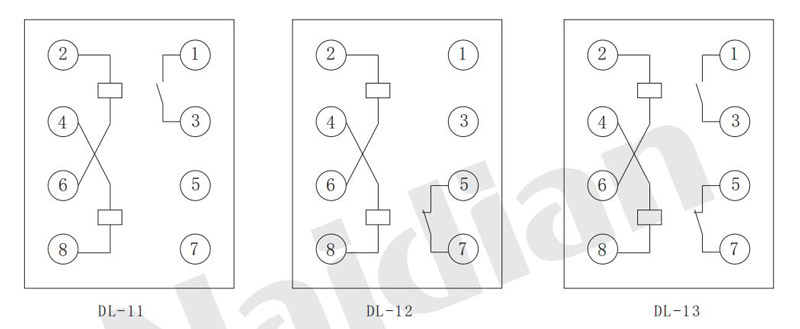

Internal wiring

dl 10xldljdq 2
